MCC Panel

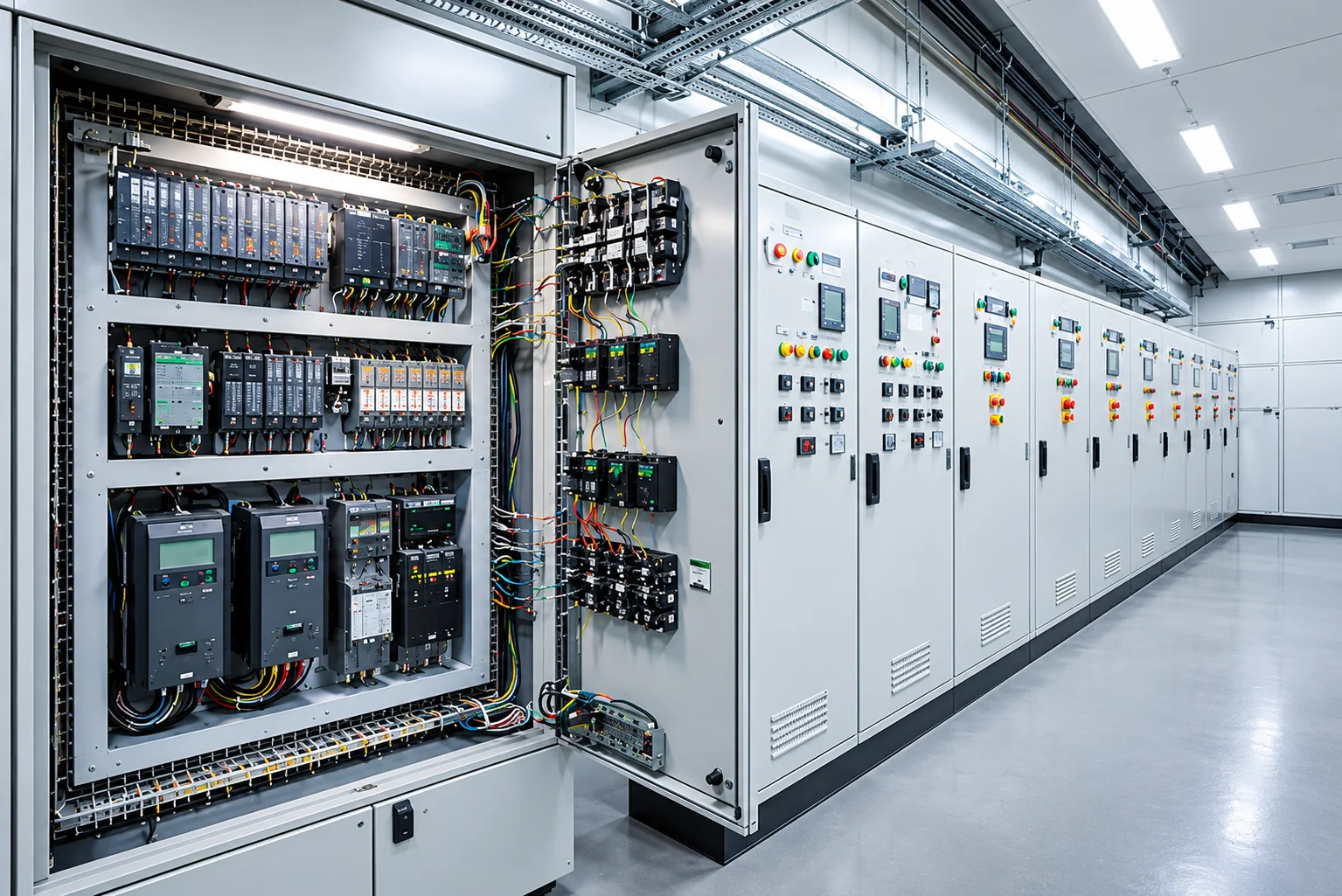

A Motor Control Center (MCC) panel controls and manages the performance of an electric motor. We offer a wide range, compartmentalized with ACB or MCCB, SFU, DOL, ATS, star-delta starters and VFD starters.
The range can be fully drawn out with incoming and outgoing feeders, or built as non-draw-out type. MCC panels are widely used for reducing start voltage, reversing control, varying speed, and protecting against overloads and faults.
Technical specification
| Rated insulation voltage | 690 V |
|---|---|
| Rated operating voltage | 400 V |
| Nominal frequency | 50 Hz |
| Rated current | Up to 6300 A |
| Protection class | IP 20 – IP 65 |
Compartment and starter options
Auto Transfer Switch (ATS) & Synchronizing Panels
Our ATS panels move critical loads to emergency sources with a simple design and high reliability. An automatic change-over system keeps the electrical supply going with minimum interruption when the normal supply fails.
See the change-over
Specifications
- Neutral busbars rated up to 100% of the main busbar; earth busbars up to 50% of the neutral busbar.
- Can be interfaced with the Building Management System (BMS) for monitoring and controlling.
- Can be designed with multiple incomers and bus-couplers.
- Available for indoor and outdoor applications, up to IP55.
Power Factor Improvement (PFI)
Power factor correction panels improve the power factor in electrical systems while keeping energy use and cost efficient. They suit processing plants with fluctuating loads.
Why power factor matters
Apparent power the supply must carry
Real power doing work
Reactive power
Illustration only. Apparent power = real power ÷ power factor.
Technical specification
- Rated insulation voltage 1000 V.
- Can be interfaced with the Building Management System (BMS) for monitoring and controlling.
- Available for indoor and outdoor applications.
Suited to
Need a panel built for your plant?
Tell us the motors, the supply and the site. We will specify the panel with you.
