Switchgear · up to 36 kV · 6300 A

Switchgear for every step of the power path

Medium-voltage VCB and load break switch panels up to 36 kV, and low-voltage distribution boards up to 6300 A, built to IEC standards with ABB, Siemens, Schneider, Hyundai and LS breakers.

Request a quote See where each panel fits

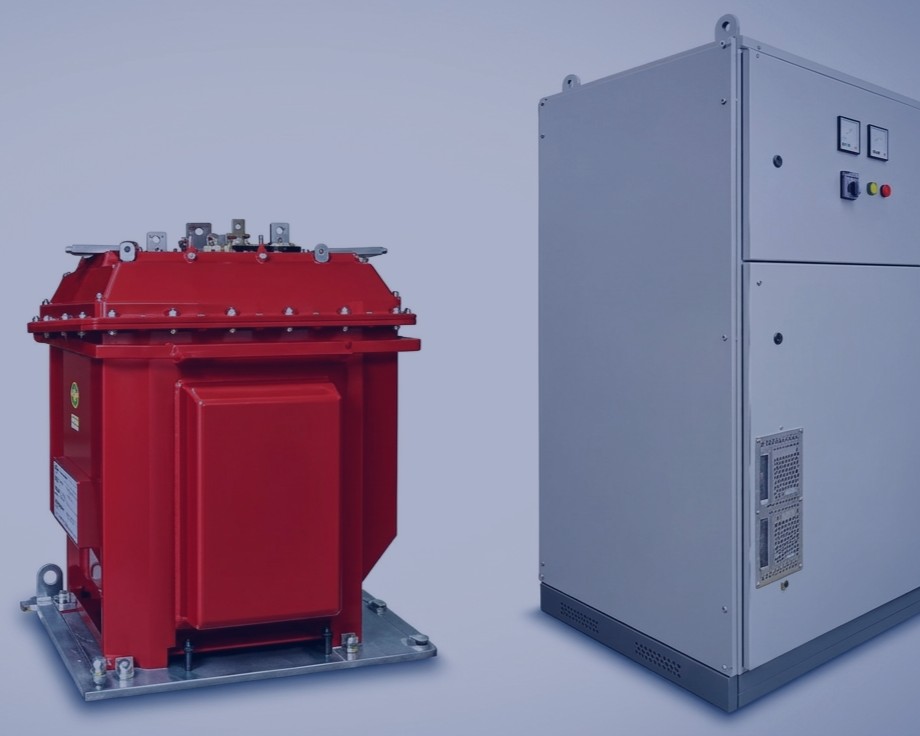

MV VCB switchboard
11 kV / 33 kVMV VCB · LBS
IEC StandardsType tested
Power Path

Follow the current from the grid to your load

Select a panel to jump to its specification.

  1. Incoming supply11 kV or 33 kV from the grid
  2. MV VCB panelSwitches and protects the medium-voltage board
  3. LBS 12 kVIsolates a transformer without cutting the main line
  4. Transformer12 kV / 415 V step-down
  5. LV switchgearMain distribution board and outgoing feeders
  6. Your buildingMalls, hospitals, universities, hotels
Find my panel

What does your site need?

Pick the job and we point you to the right panel and its specification.

Recommended

MV Switchgear (VCB)

Vacuum circuit breaker panels for 11 kV and 33 kV, built to IS/IEC 62271-200 with arc classification up to 40 kA at 11 kV.

    See specification
    Medium voltage

    MV Switchgear (VCB)

    A complete range of medium-voltage switchgear and control gear that meets national and international standards for quality and safety. The range covers air-insulated switchgear and ring main units.

    The standard 11 kV / 33 kV switchboard suits power generation, distribution and industrial users. Its compact design is fully loaded with safety features and complies with the latest IS/IEC standards, so it is reliable and easy to operate and maintain.

    Vacuum breakerABB VD4
    • Every system goes through strict quality control.
    • Quality management follows environmental, health and safety standards.
    MV VCB switchboard
    MV Switchgear (VCB) · 11 kV / 33 kV

    Technical specification

    12 kVrated voltage at 50 Hz
    11 kV33 kV
    Switchboard reference standardIS/IEC 62271-200IS/IEC 62271-200
    ClassificationIAC up to 40 kA / 1 sIAC up to 1.5 kA / 1 s
    VCB standardIEC 62271-100IEC 62271-100
    Rated voltage @ 50 Hz12 kV36 kV
    Rated current of feedersUp to 3150 AUp to 2500 A
    Rated current of busbarUp to 4000 AUp to 3150 A
    Ambient temperatureMax 40 °CMax 40 °C
    Power frequency withstand (V rms)28 kV70 kV
    Impulse withstand (V peak)75 kV170 kV
    Short time withstand (3 s)Up to 40 kAUp to 31.5 kA
    Protection, external compartmentIP4XIP4X
    Protection, internal compartmentIP2XIP2X
    Type of coolingONANONAN

    Panel dimensions

    Length
    850 mm
    Depth
    1200 mm
    Height
    2000 mm
    Medium voltage

    MV Switchgear (LBS) 12 kV

    A 12 kV load break switch sits before a 12 kV / 415 V transformer. If the transformer has to be shut down, the switch turns it off and the main distribution line to other users keeps running.

    It is a mechanical switch protection system and costs less than a VCB. Air-insulated LBS is one of the two types sold internationally, and most LBS users in Bangladesh choose it.

    BrandsABBF&G
    • Asian Royal Energy Ltd is the biggest local supplier of air-insulated LBS in Bangladesh.
    MV LBS cabinet 12 kV
    MV Switchgear (LBS) · 12 kV

    Technical parameters

    12 kVrated voltage
    7.2 kV12 kV
    Rated voltage (kV)7.212
    Rated current (A)630–1250630–1250
    Short time withstand current (kA)2525
    Short time withstand duration (s)11
    Rated current of HT fuse (A)10–10010–100

    Panel dimensions

    Length
    850 mm
    Depth
    1200 mm
    Height
    2000 mm
    Low voltage

    LV Switchgear

    Asian Gear main distribution boards distribute and control power in large buildings such as shopping malls, hospitals, universities and hotels. They are installed after the main source, such as a transformer or generator, and divide the feed into outgoing feeders.

    Built in 14/16 SWG powder-coated sheet steel for indoor floor mounting, for three-phase, four-wire, 50 Hz, 440 V AC systems with a TPN+E busbar.

    Breakers fromABBSIEMENSHYUNDAISchneider ElectricLS
    LV main distribution board
    LV Switchgear · up to 6300 A
    6300 AMain busbars
    100 kABusbar short-circuit withstand, 1 s (65 kA for 3 s)
    1000 VRated insulation voltage
    Form 1–4bInternal separation
    50 °CDesigned ambient temperature
    0.75 gSeismically tested, 8.0 Richter

    Specifications

    • Compatible and ASTA type tested to IEC 61439-1 & 2.
    • Neutral busbars rated up to 100% of the main busbar; earth busbars up to 100% of the neutral busbar.
    • Internal arc fault tested to IEC 61641 up to 100 kA, classified as PSC assembly with personal and assembly protection under arcing.
    • Busbar and live parts spaced to European standards IEC 158 and VDE-C110 for 660 V.
    • Short-circuit withstand of 25–50 kA for 1 second.
    • Panel boards built to IEC 439 / BS 5486.
    • All circuit breaker units and panel boards comply with the 15th IEE wiring regulation for isolation and switching.

    Where it is used

    Shopping mallsHospitalsUniversitiesHotels
    Get in Touch

    Need a panel sized for your load?

    Tell us the voltage, current and fault level. We will recommend the switchgear.
